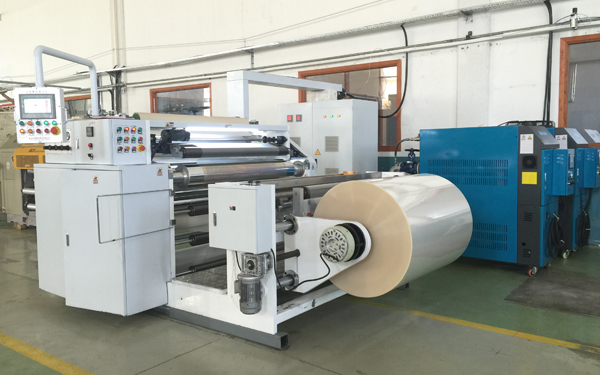

Wide Web Soft Embossing Machine

Inquiry Form

The wide web soft embossing machine is aimed to transfer the master pattern which from the nickel metal onto the film such as BOPP, PET (coated), CPP and PVC. The film thickness ranges from 12 to 200um, this film embossing machine and electroforming machine able to make different kinds of patterns (artwork).

This holographic embossing machine is PLC controlled, it can change different plate roller quickly without oil leakage, and does not affect the master plate seam during heating and embossing. There is no wrinkling and shrinking in the process of embossing.

Technical Specifications
Model 800 1200
Embossing width 880mm 1200mm
Roller circumference 330mm 520mm
Working speed 60m /min 60m /min
Diameter 500mm 500mm
Total power 15kw 18kw
Voltage 380V 380V
Air pressure 4.5kg 4.5kg
Machine dimension 2.2 x 2.6 x 1.17M 2.2 x 2.6 x 1.17M
Machine weight 1500kg 3500kg
